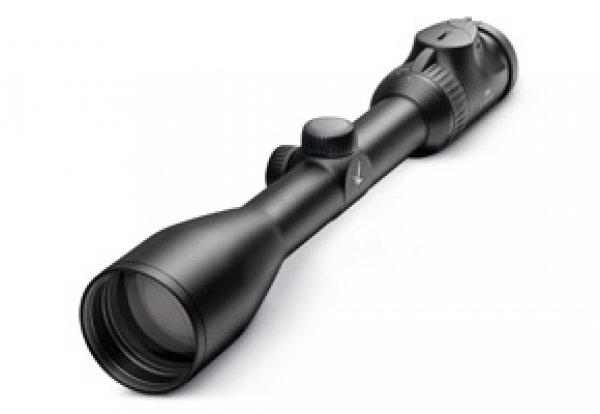

Z6 |
Z6(i) |
|||||||||
---|---|---|---|---|---|---|---|---|---|---|
Vergrößerung
|
1-6x | 1-6x | 1,7-10x | 2-12x | 2,5-15x | 2,5-15x | 3-18x | 5-30x | ||
wirksamer Objektiv-Ø (mm)
|
9,6-24
|
10,9-24
|
16-42
|
19,3-50
|
24,2-44
|
24-56
|
29-50
|
48,2-50
|
||
Austrittspupillen-Ø (mm)
|
9,6-4 | 10,8-4 | 9,6-4,2 | 9,6-4,2 | 9,5-2,9 | 9,5-3,8 | 9,5-2,8 | 9,5-1,7 | ||
Austrittspupillenabstand
(mm) (Augenabstand) |
95 | 120 | 95 | 95 | 95 | 95 | 95 | 95 | ||
Sehfeld (m/100 m)
|
42,5-6,8 | 33,5-5,4 | 25,2-4,2 | 21-3,5 | 16-2,7 | 16,5-2,7 | 13,3-2,2 | 7,9-1,3 | ||
Sehfeld (Grad)
|
23,8-3,9 | 18,9-3,1 | 14,3-2,4 | 11,8-1,95 | 9,2-1,5 | 9,4-1,5 | 7,6-1,3 | 4,5-0,75 | ||
augenseitiges Sehfeld
(Grad) |
23,4 | 18,8 | 23,7 | 23,4 | 23,3 | 23,2 | 22,8 | 22,8 | ||
Dioptrieausgleich (dpt)
|
-3 bis +2 | -2,8 bis +1,8 | -3 bis +2 | -3 bis +2 | -3 bis +2 | -3 bis +2 | -3 bis +2 | -3 bis +2 | ||
Lichttransmission (%)
|
90 | 91 | 90 | 90 | 90 | 91 | 90 | 90 | ||
Dämmerungszahl nach
DIN 58388 |
2,8-12 | 2,8-12 | 4,7-20,5 | 5,7-24,6 | 7,1-25,7 | 7,1-29 | 8,5-30 | 14,1-38,7 | ||
Treffpunktkorr. /
Klick (mm/100 m) |
15 | 15 | 10 | 10 | 10 | 10 | 51 | 51 | ||
max. Stellweg nach
Höhe / Seite (m/100m) |
2 | 2,1 | 1,5 | 1,5 | 1,8/1 | 1,8/1 | 1,8/1 | 1,2/0,7 | ||
Parallaxenausgleich(m)
|
- | - | - | - | 50-8 | 50-8 | 50-8 | 50-8 | ||
Filtergewinde objektivseitig
|
M 27x0,75 | M 27x0,75 | M 44x0,75 | M 52x0,75 | M 46x0,75 | M 58x0,75 | M 52x0,75 | M 52x0,75 | ||
Länge (mm) unbeleuchtet
/beleuchtet |
293/296 | –/315 | 321/324 | 340/343 | 356/359 | 364/367 | 381/384 | 395/398 | ||
Gewicht
(g) |
L |
unbeleuchtet/ beleuchtet
|
420/440 | –/430 | 470/490 | 520/540 | 555/575 | 635/655 | 595/615 | 600/620 |
SR | unbeleuchtet/ beleuchtet | –/460 | - | –/500 | –/550 | –/590 | –/665 | –/635 | - | |
Mittelrohrdurchmesser
(mm) |
30 | 30 | 30 | 30 | 30 | 30 | 30 | 30 | ||
Absehen | unbeleuchtet | 42 | - | 4A2 | 4A2,4A-3002 | - | 4A2, 4A-3002 | 4A-3002 | BRH2, Plex2 | |
beleuchtet | 4-I, CD-I, LD-I | 4-I2, CD-I2 | 4A-I, CD-I, 4A-300-I | 4A-I, BRX-I2, 4A-300-I | 4A-I2, BRX-I2 | 4A-I, BRX-I, 4A-300-I | 4A-I2, BRX-I2, 4A-300-I2 | 4A-I2, BRX-I2, 4A-300-I2 | ||
Absehen mit Ballistikturm
|
- | - | 4A-I | 4A-I | 4A2, 4A-I | 4A2, 4A-I | Plex2, 4A-I | Plex2, 4A-I2 | ||
Beleucht. -einheit |
Helligkeitsstufen | Nacht: 0 - 32 / Tag: 33 - 64 | ||||||||
Betriebsdauer (h) | Nachtbereich bei mittlerer Helligkeit:1400; Tagbereich bei mittlerer Helligkeit: 180 |
